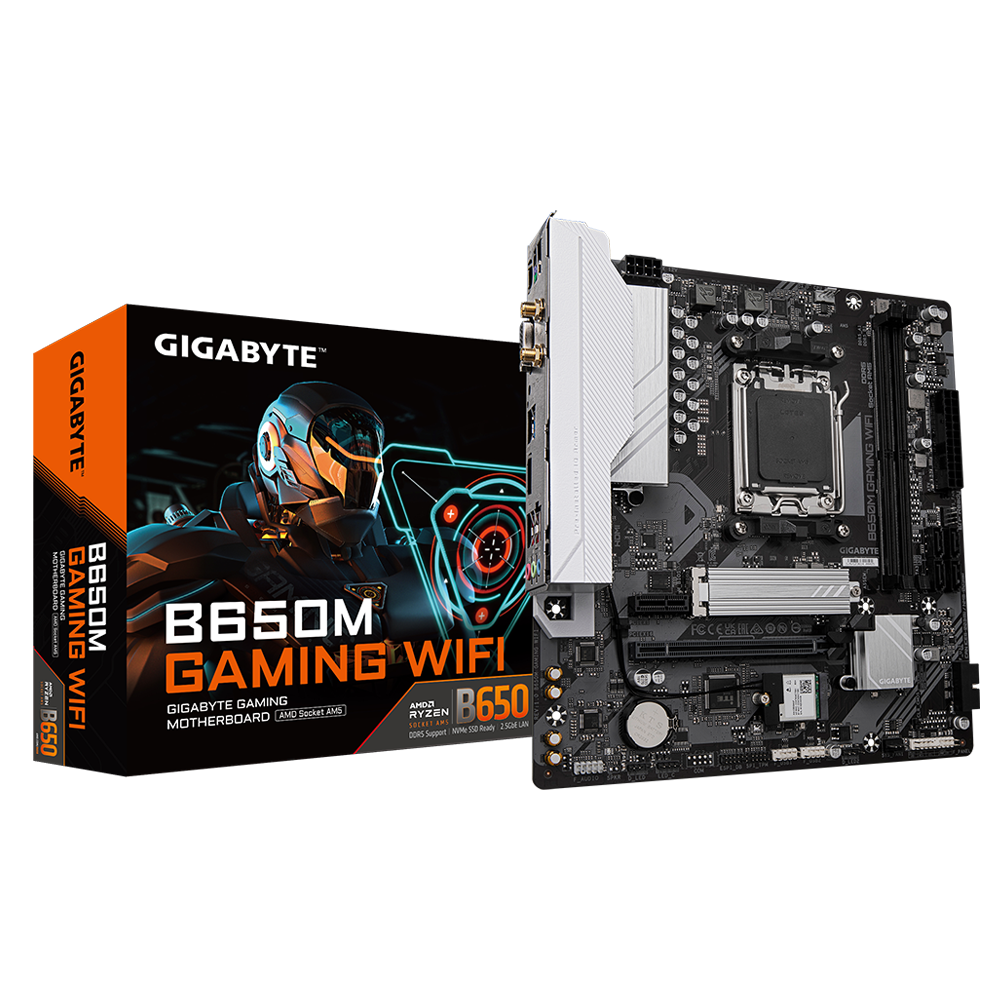

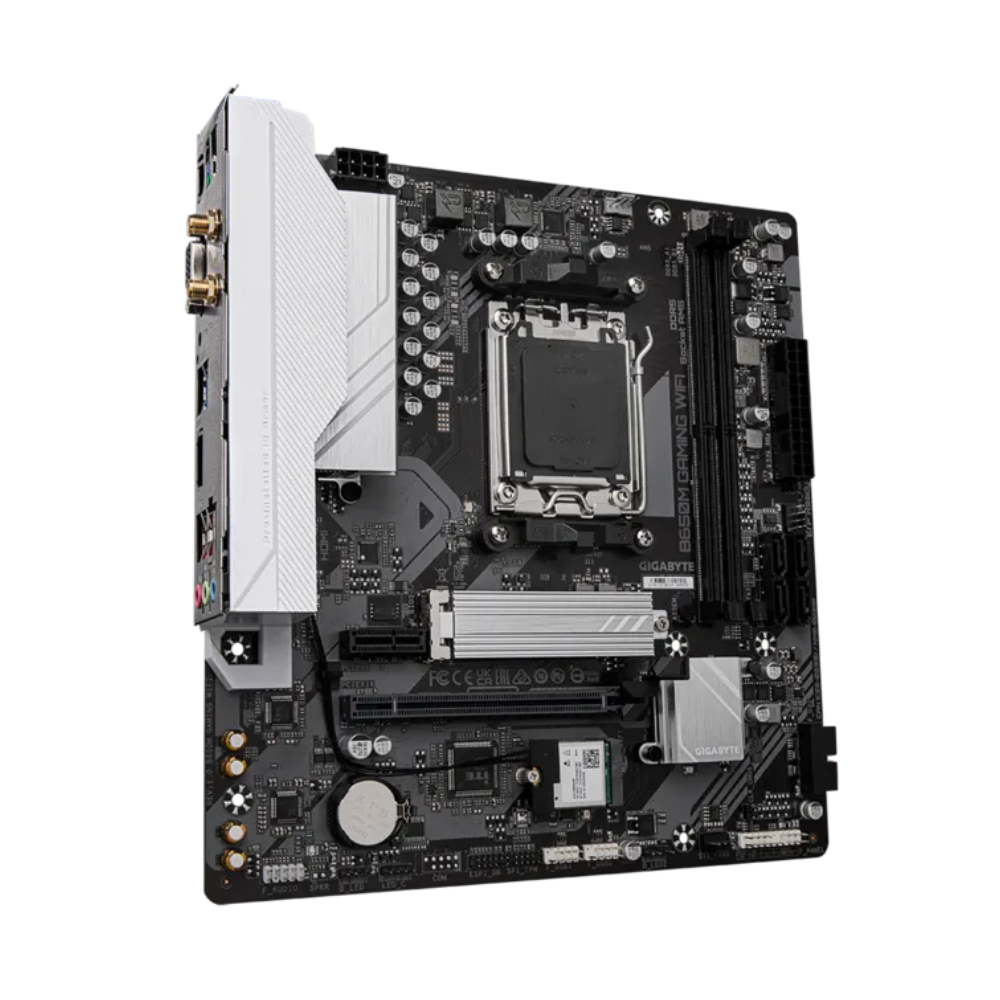

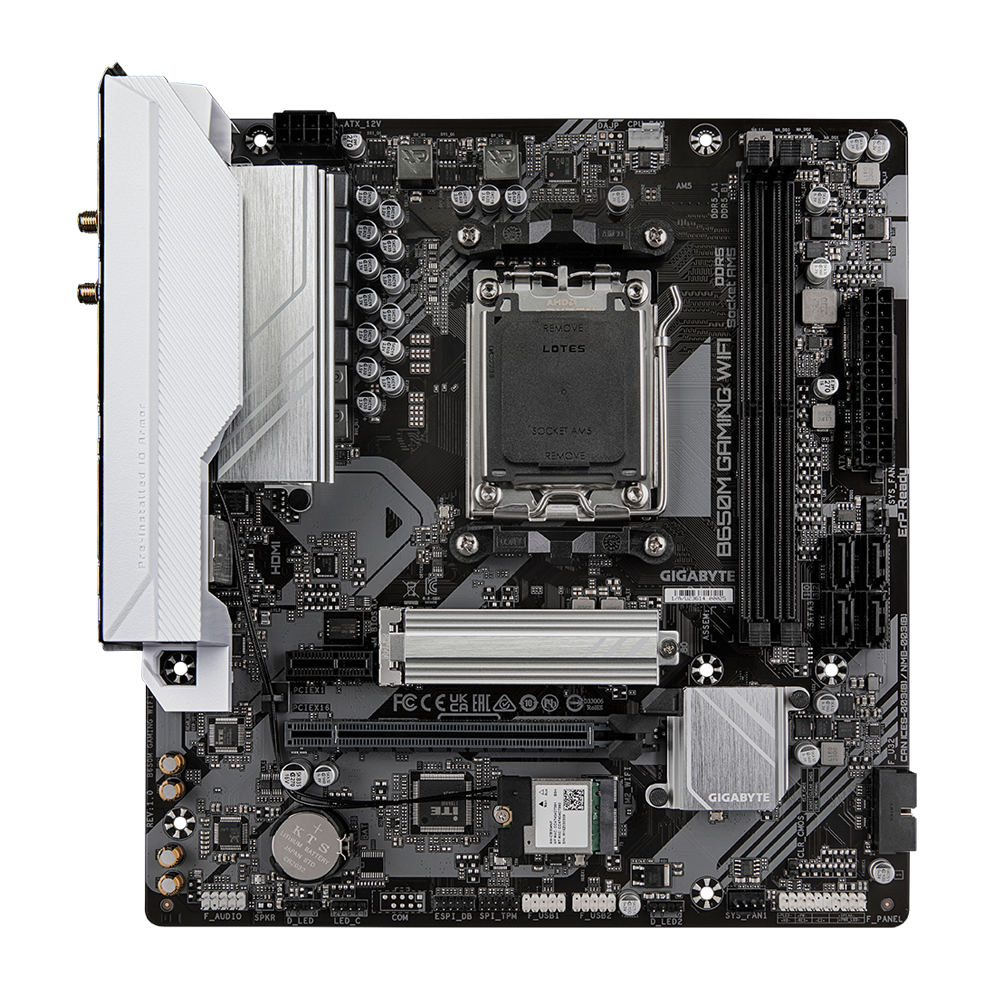

Gigabyte B650M Gaming WIFI DDR5 AM5 Motherboard is a Micro ATX motherboard designed for AMD Socket AM5 desktop systems using AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series processors. Built with the AMD B650 chipset, DDR5 memory support, PCIe 4.0 expansion, PCIe 4.0 M.2 storage, 2.5GbE LAN, onboard 802.11ac Wi-Fi, and Smart Fan 6 cooling control, it provides a strong platform for gaming, productivity, and modern PC builds.

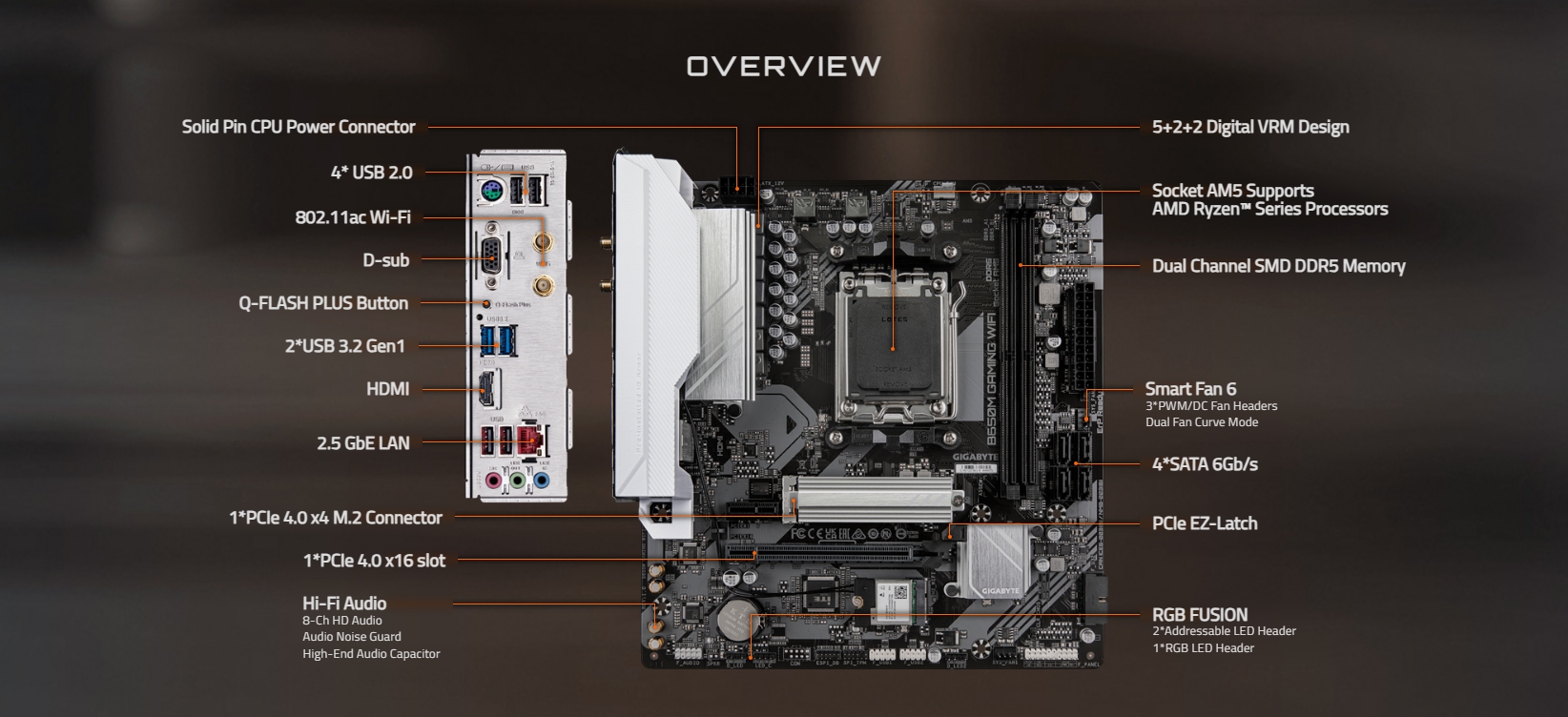

Overview
The Gigabyte B650M Gaming WIFI DDR5 AM5 Motherboard is designed for users who need a compact AMD platform with essential performance, storage, networking, and expansion features. Its Micro ATX form factor makes it suitable for space-conscious desktop builds while maintaining support for modern Ryzen processors and DDR5 memory.
Power & Stability
This motherboard uses a 5+2+2 phases digital VRM solution with Low RDS(on) MOSFETs to support stable power delivery for AMD Socket AM5 processors. It also includes a solid pin CPU power connector and GIGABYTE Ultra Durable design elements for reliable operation.
Memory & Performance
The Gigabyte B650M Gaming WIFI DDR5 AM5 Motherboard supports dual-channel DDR5 memory through two DIMM slots, with support for up to 128GB system memory. It also supports AMD EXPO and Intel XMP memory modules for compatible performance memory configurations.
Expansion & Storage
The motherboard includes one PCIe 4.0 x16 slot for graphics card expansion, one PCIe 3.0 x1 slot, one PCIe 4.0 x4 M.2 connector for NVMe SSD storage, and four SATA 6Gb/s connectors for additional storage devices.
Connectivity & Features
The Gigabyte B650M Gaming WIFI DDR5 AM5 Motherboard includes Realtek 2.5GbE LAN, onboard 802.11ac dual-band Wi-Fi, Bluetooth 4.2, HDMI, D-Sub, USB 3.2 Gen 1, USB 2.0, Realtek high-definition audio, RGB Fusion support, Smart Fan 6, Q-Flash, and Q-Flash Plus for easier BIOS updating.
Realtek 2.5GbE LAN chip, 2.5Gbps / 1Gbps / 100Mbps
Wireless Module
AzureWave Wi-Fi AW-CB304NF, Realtek RTL8821CE
Wi-Fi
802.11 a/b/g/n/ac, 2.4GHz and 5GHz dual-band, 11ac wireless standard
Bluetooth
Bluetooth 4.2
Expansion Slots
1 x PCI Express x16 slot, 1 x PCI Express x1 slot
PCIe x16 Support
PCIe 4.0 x16 with AMD Ryzen 7000 / Ryzen 9000 Series processors; PCIe 4.0 x8 or x4 depending on AMD Ryzen 8000 Series processor type
PCIe x1 Support
PCIe 3.0 x1
M.2 Storage
1 x M.2 connector, Socket 3, M key, type 2580 / 2280 SSD support
M.2 Interface
PCIe 4.0 x4 / x2 SSD support depending on processor
SATA Storage
4 x SATA 6Gb/s connectors
RAID Support
RAID 0, RAID 1, and RAID 10 support for NVMe SSD and SATA storage devices
USB Support
USB 3.2 Gen 1 and USB 2.0 / 1.1 support
Back Panel USB
2 x USB 3.2 Gen 1 ports, 4 x USB 2.0 / 1.1 ports
Internal USB Headers
1 x USB 3.2 Gen 1 header, 2 x USB 2.0 / 1.1 headers
Internal I/O Connectors
24-pin ATX power, 8-pin ATX 12V power, CPU fan, 2 x system fan, 2 x addressable LED strip, RGB LED strip, M.2 Socket 3, 4 x SATA 6Gb/s, front panel, front audio, USB 3.2 Gen 1, 2 x USB 2.0 / 1.1, TPM, Clear CMOS jumper

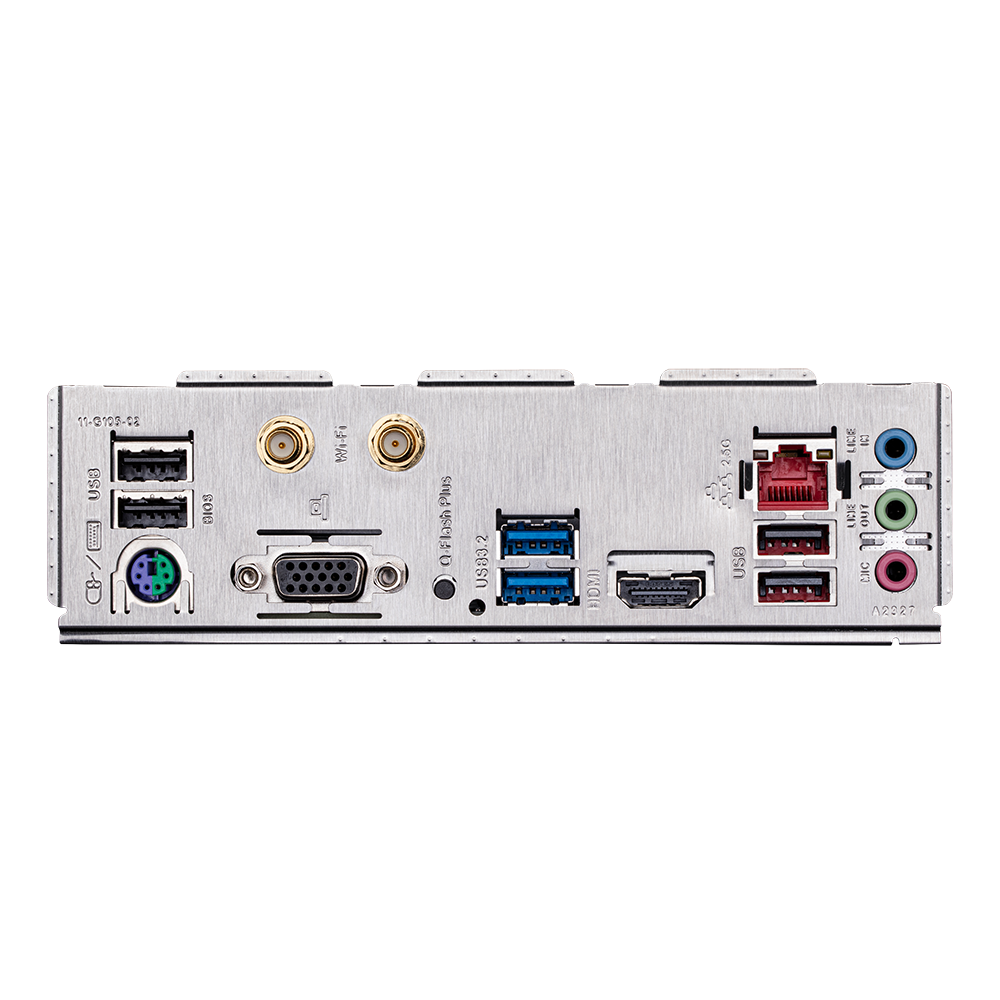

Back Panel Connectors
4 x USB 2.0 / 1.1, PS/2 keyboard/mouse, D-Sub, Q-Flash Plus button, 2 x USB 3.2 Gen 1, HDMI, RJ-45, 3 x audio jacks
I/O Controller
iTE I/O Controller Chip
Hardware Monitoring
Voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, fan fail warning, fan speed control
BIOS
1 x 256 Mbit flash, licensed AMI UEFI BIOS
Unique Features
GIGABYTE Control Center, Q-Flash, Q-Flash Plus
Bundled Software
Norton Internet Security OEM version, LAN bandwidth management software
Operating System Support
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Micro ATX, 24.0cm x 22.5cm
