GALAX RTX 5070 GPU OC 2Fan 12GB GDDR7 192-bit Black NVIDIA Blackwell

The GALAX RTX 5070 GPU delivers exceptional gaming performance powered by NVIDIA Blackwell architecture, featuring 12GB of GDDR7 memory on a 192-bit interface, 6144 CUDA cores, and a factory overclocked boost clock of 2527 MHz. This dual-fan OC edition combines compact SFF-friendly design with ARGB lighting and 1-Click OC capability, making it a versatile choice for high-refresh 1440p gaming and AI-accelerated creative workloads.

Performance

At the heart of the GALAX RTX 5070 GPU is the NVIDIA GB205 die built on the Blackwell architecture, delivering 6144 CUDA cores, 192 TMUs, and 80 ROPs. The card operates at a base clock of 2325 MHz with a factory-overclocked boost clock of 2527 MHz, which is 15 MHz above the NVIDIA reference specification. Fourth-generation RT Cores and fifth-generation Tensor Cores enable real-time ray tracing and AI-powered features like DLSS Multi Frame Generation for significantly higher frame rates in supported titles.

Memory and Bandwidth

The GALAX RTX 5070 GPU is equipped with 12GB of GDDR7 memory running at 1750 MHz, delivering an effective data rate of 28 Gbps across a 192-bit memory interface. This configuration provides a total memory bandwidth of 672 GB/s, ensuring rapid data access for high-resolution textures, complex shaders, and large creative project files. The GDDR7 memory standard offers improved power efficiency and higher throughput compared to previous-generation GDDR6X.

Cooling and Design

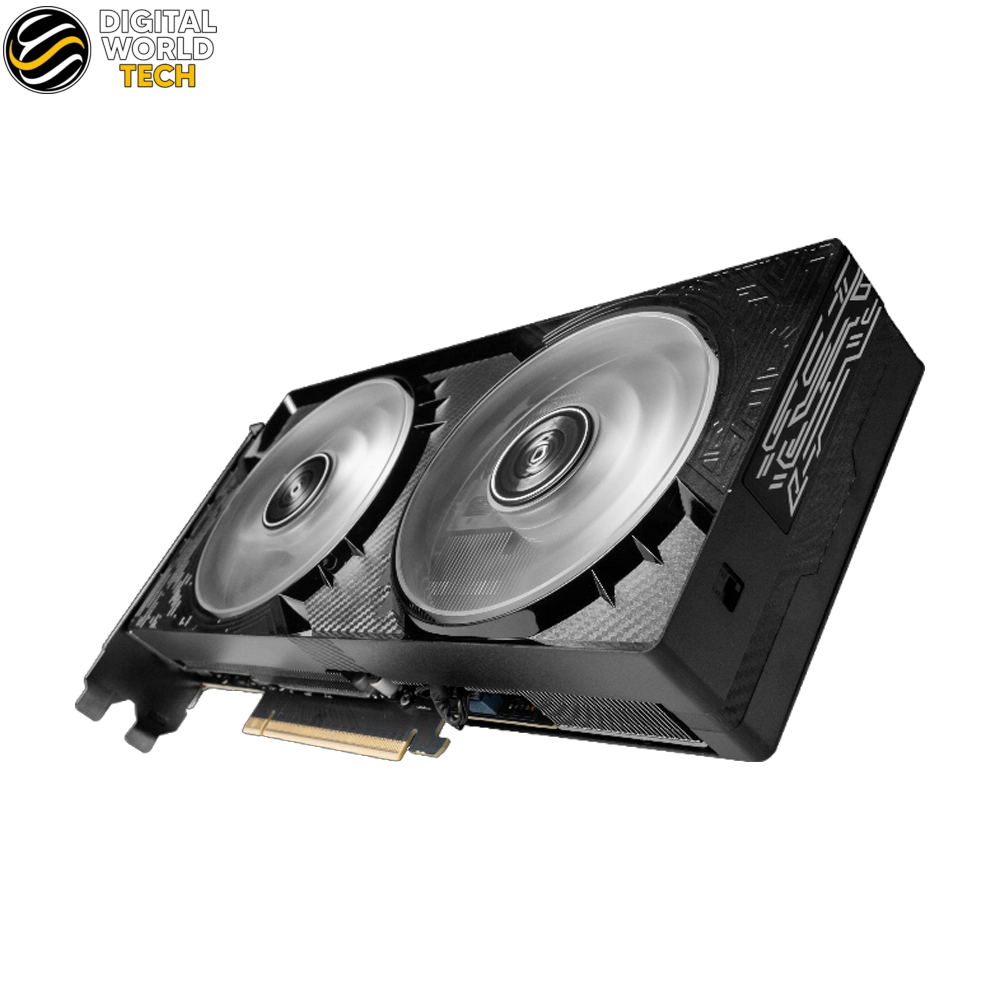

This GALAX RTX 5070 GPU features a dual-fan (2X) cooling solution designed for efficient heat dissipation in a compact form factor suitable for small-form-factor builds. The black shroud integrates customizable ARGB lighting that can be toggled via an onboard physical button or controlled through the GALAX mobile app over a shared WiFi network. The 1-Click OC feature allows users to apply a safe factory-tuned overclock with a single action through the GALAX software ecosystem.

Connectivity and Compatibility

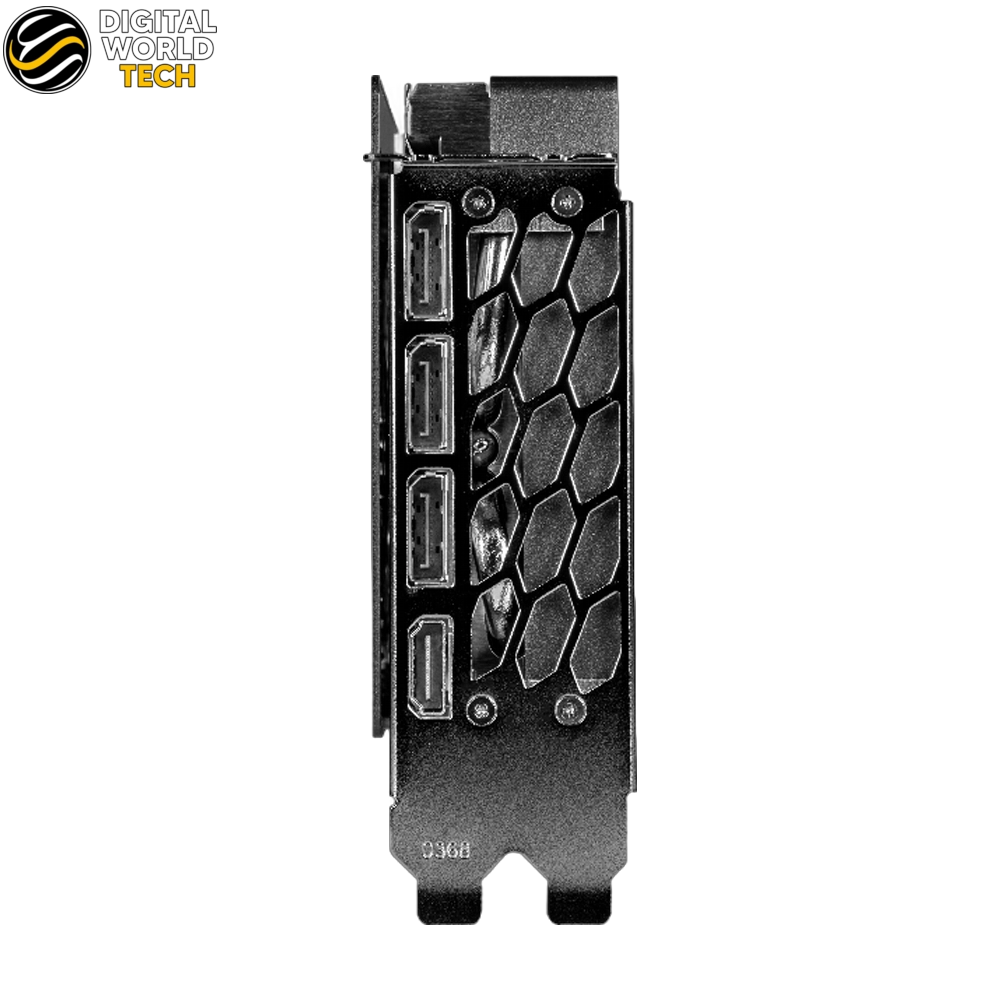

The GALAX RTX 5070 GPU supports the latest display standards with three DisplayPort 2.1b outputs and one HDMI 2.1b port, enabling high-refresh-rate 4K and ultrawide monitor setups. The card connects via a PCIe 5.0 interface for maximum bandwidth and is VR Ready certified for immersive virtual reality experiences. NVIDIA Game Ready and Studio drivers ensure broad compatibility with the latest games and creative applications, while NVIDIA GPU Boost dynamically adjusts clock speeds based on thermal and power conditions.
