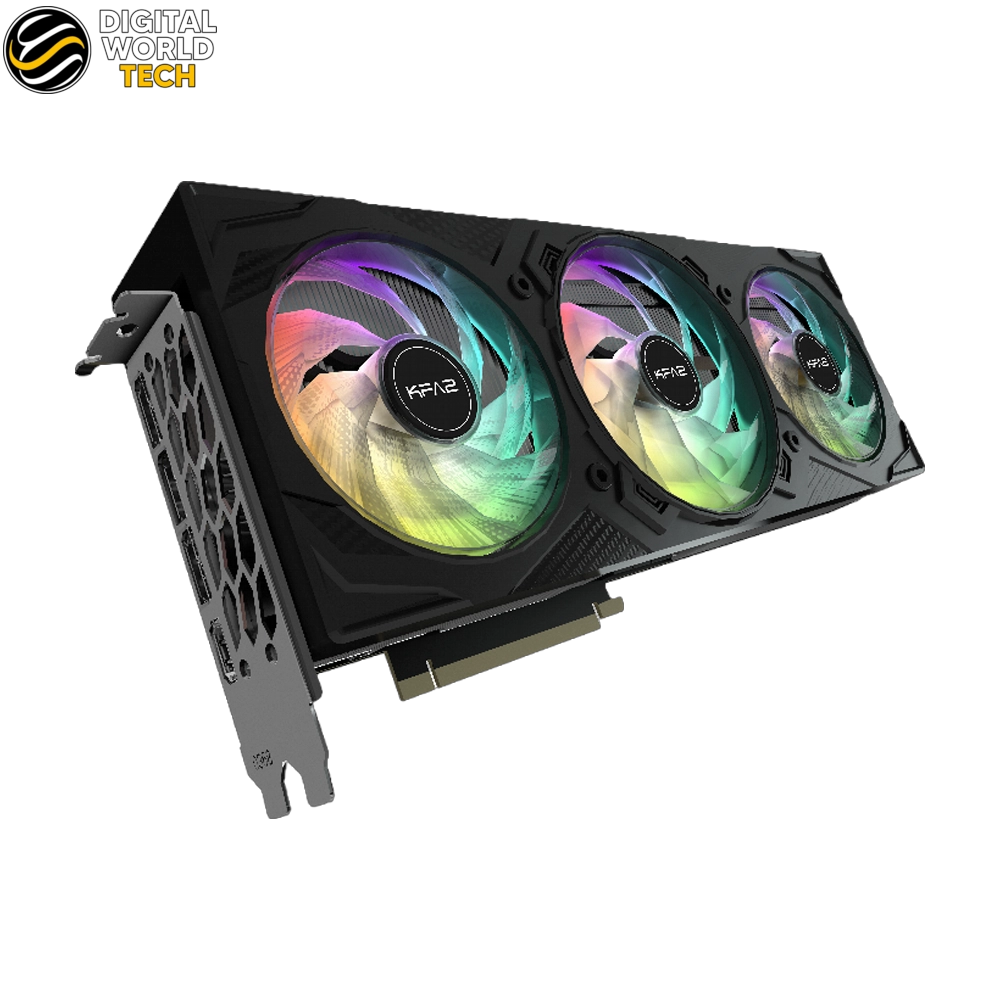

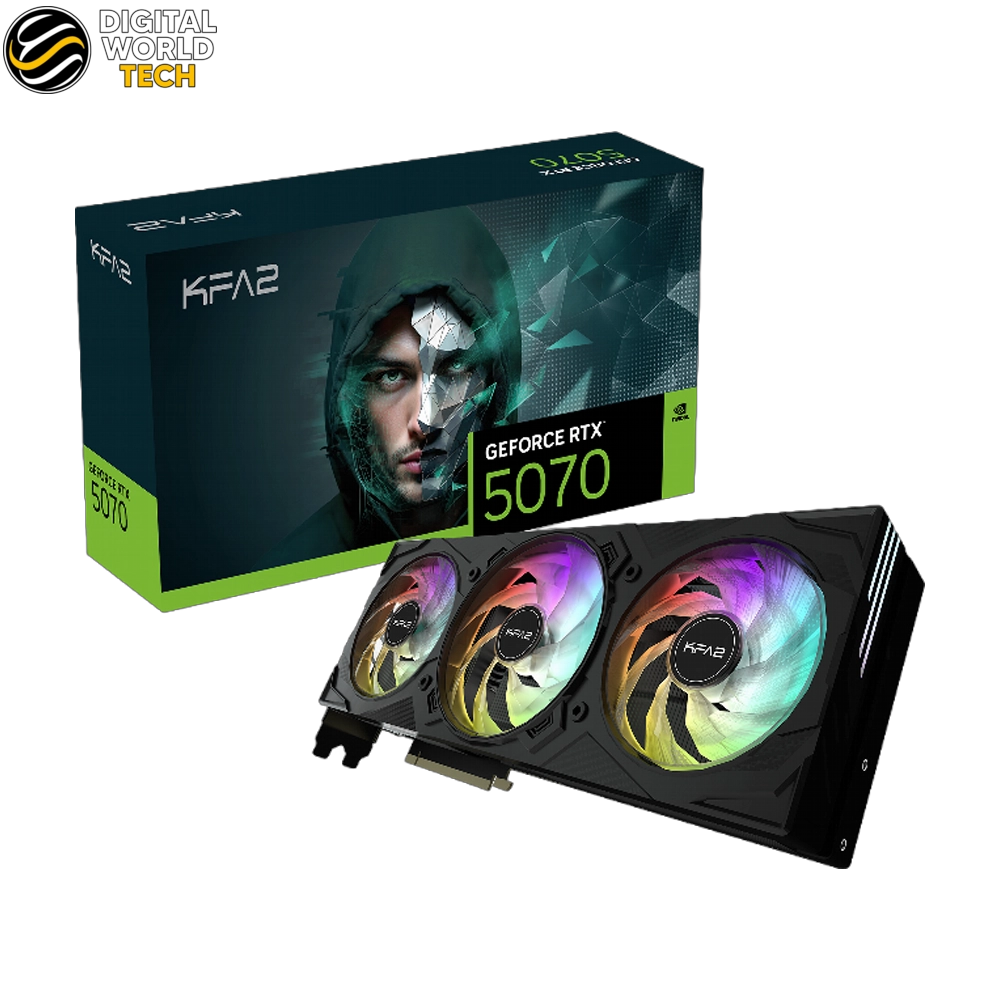

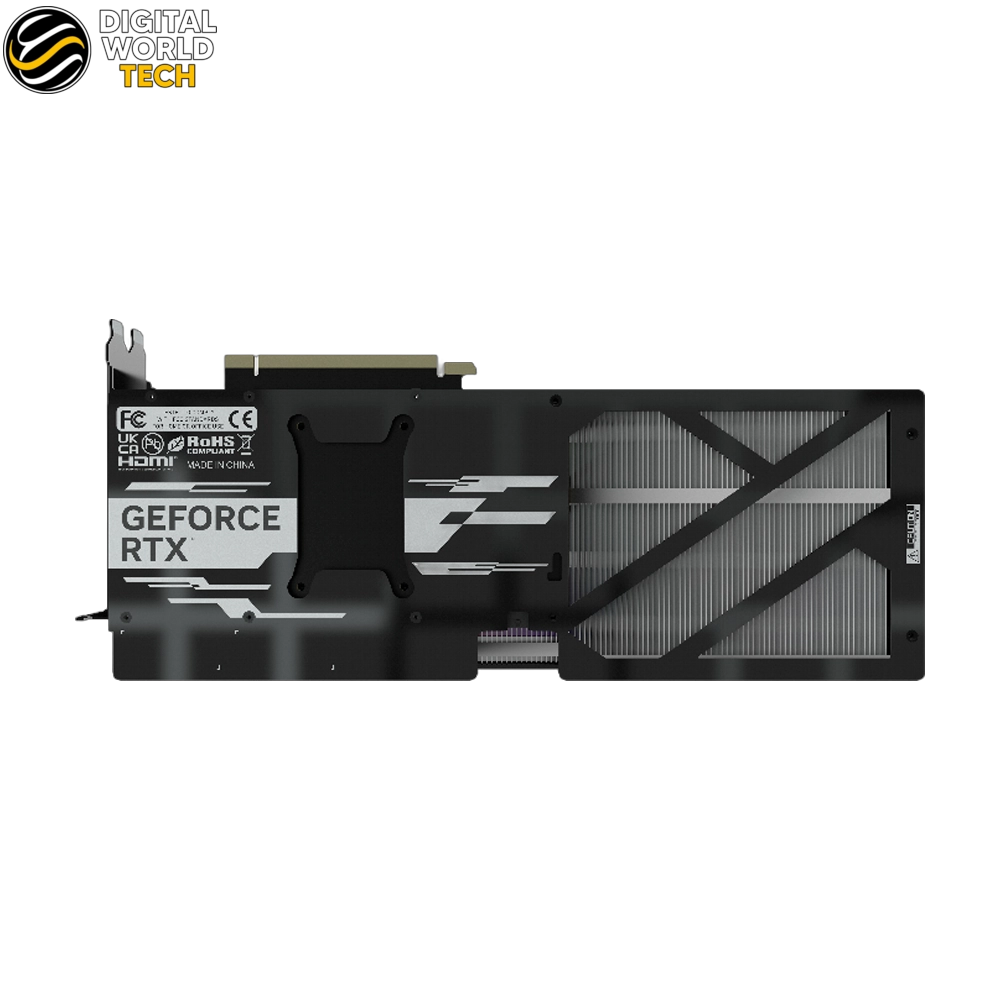

GALAX RTX 5070 GPU EX 3Fan 12GB GDDR7 192-bit Black Blackwell Architecture

The GALAX RTX 5070 GPU EX Gamer 1-Click OC delivers exceptional gaming and creator performance with 12GB of GDDR7 memory, 6144 CUDA cores, and a boost clock of 2557 MHz built on NVIDIA’s Blackwell architecture. This triple-fan graphics card features a 192-bit memory interface with 672 GB/s bandwidth and PCIe 5.0 connectivity for next-generation systems. With a 250W TDP and ARGB lighting, the GALAX RTX 5070 GPU combines powerful cooling with striking aesthetics.

Performance

At the heart of the GALAX RTX 5070 GPU is the NVIDIA GB205 chip fabricated on a 4N FinFET process with 31.1 billion transistors across a 263 mm² die. The card packs 6144 stream processors, 192 TMUs, 80 ROPs, and 48 ray tracing acceleration cores, delivering an FP32 compute performance of 26.60 TFLOPS. The 1-Click OC feature pushes the boost clock to 2557 MHz, giving gamers an extra edge in demanding titles.

Memory and Bandwidth

The GALAX RTX 5070 GPU is equipped with 12GB of GDDR7 memory running at 1750 MHz (28 Gbps effective) across a 192-bit interface, providing a total memory bandwidth of 672 GB/s. This configuration ensures smooth performance at high resolutions and in memory-intensive creative workloads such as video editing and 3D rendering.

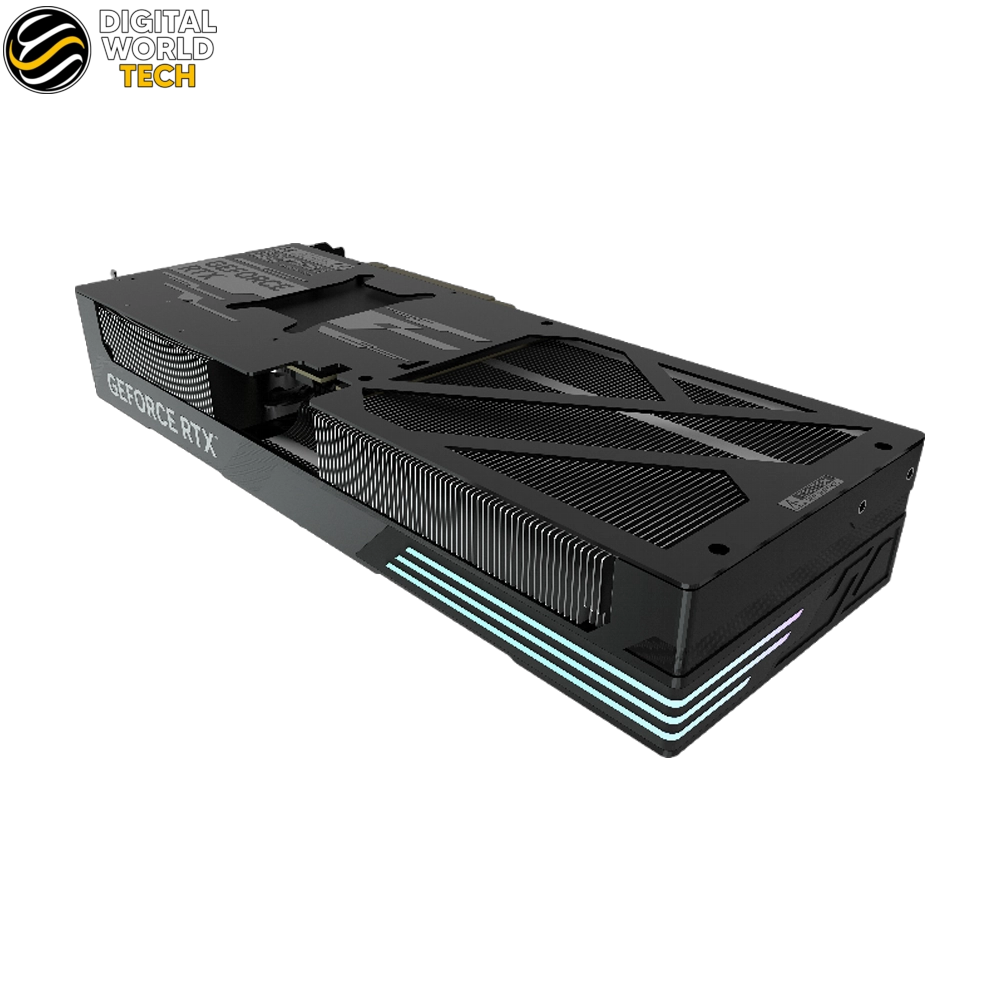

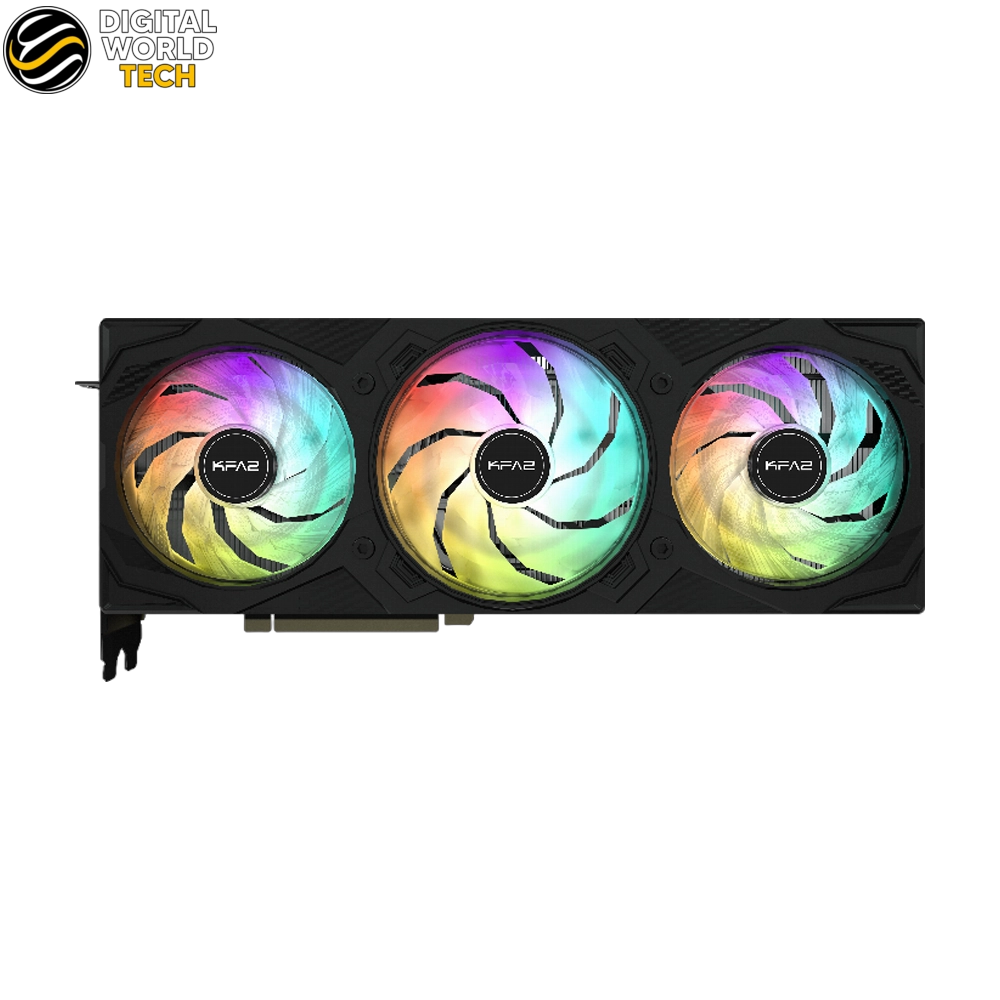

Cooling and Design

Featuring a robust triple-fan cooling solution, the GALAX RTX 5070 GPU maintains optimal temperatures under heavy load. The card occupies a triple-slot footprint with dimensions of 322 mm length, 130 mm height, and 52 mm width, weighing 1206 g. Customizable ARGB lighting adds a premium aesthetic, and the 1-Click OC app allows users to overclock, control lighting, and monitor GPU stats via WiFi.

Connectivity and Power

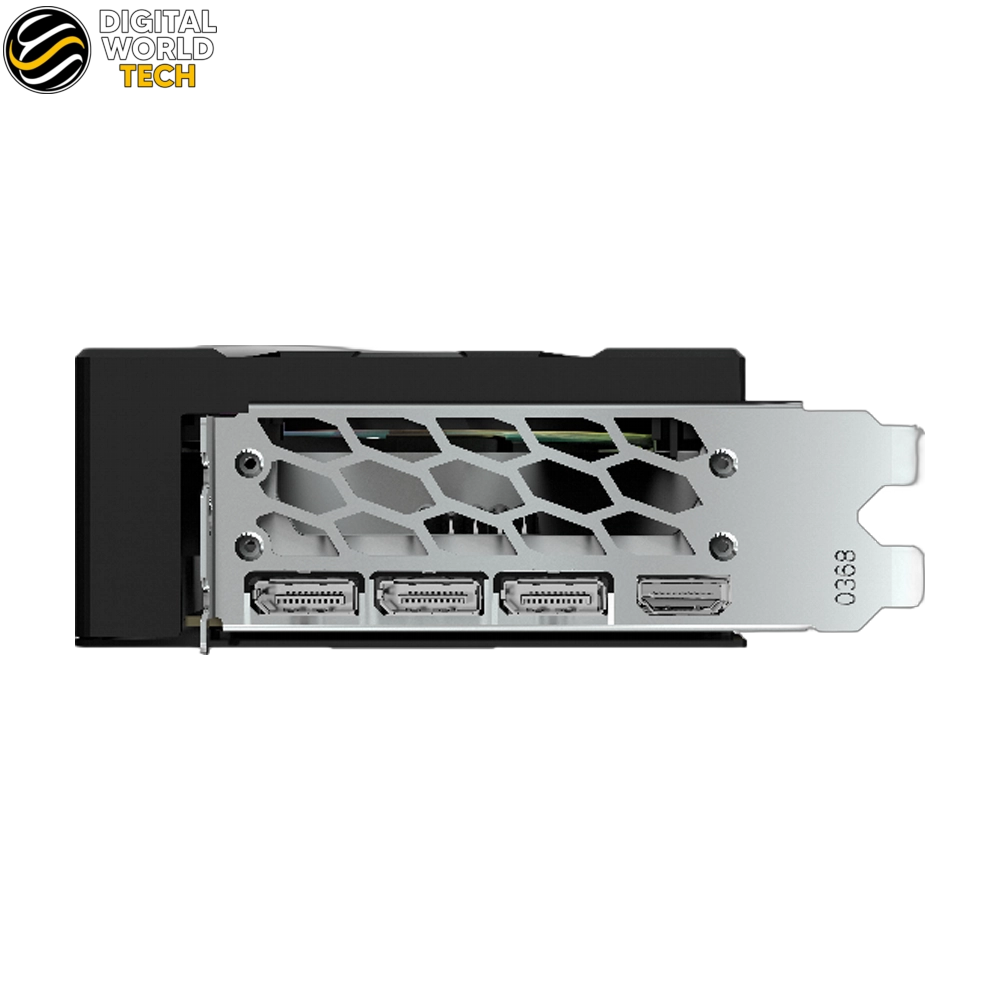

The GALAX RTX 5070 GPU connects via a PCIe 5.0 slot and draws power through a single 16-pin connector, with a 250W TDP and a recommended 600W power supply. Display outputs include 1x HDMI 2.1b and 3x DisplayPort 2.1b, supporting up to four simultaneous displays at resolutions up to 7680×4320 (8K). The card is VR Ready and supports DLSS 4 and hardware ray tracing for immersive next-gen gaming.
