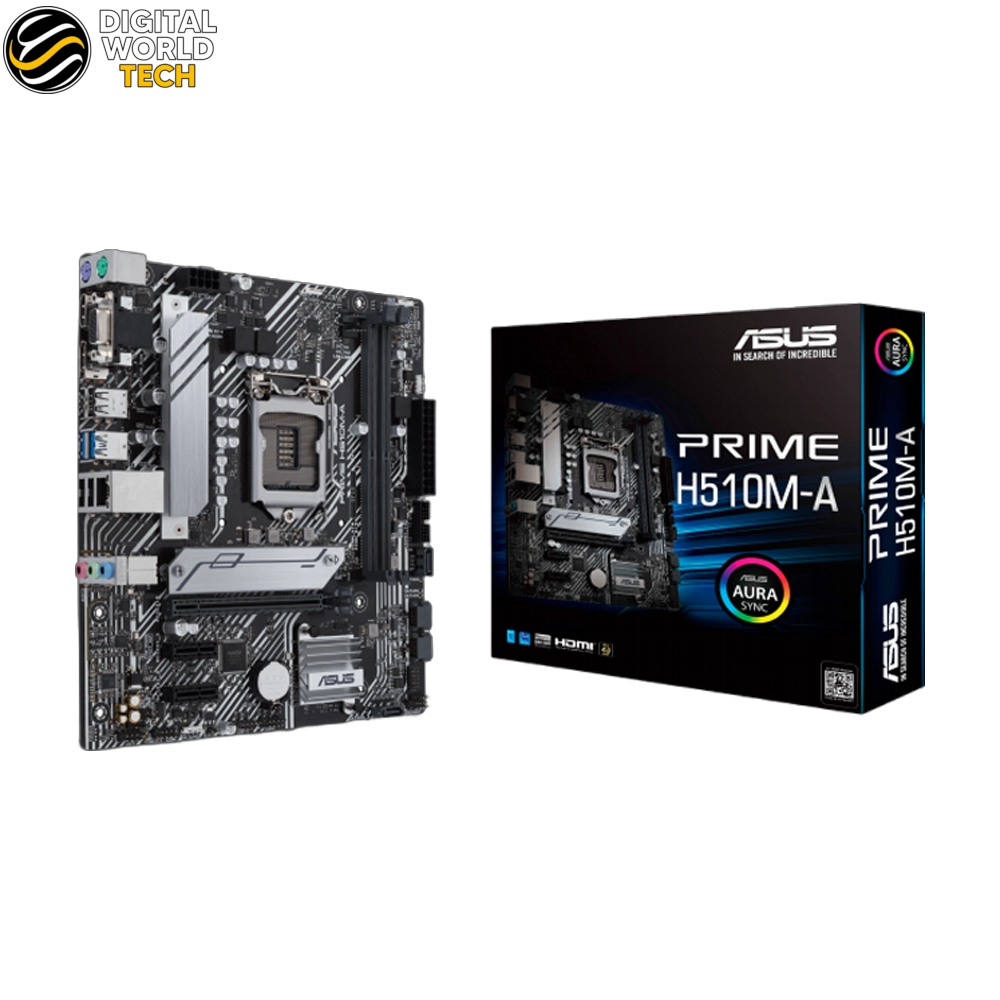

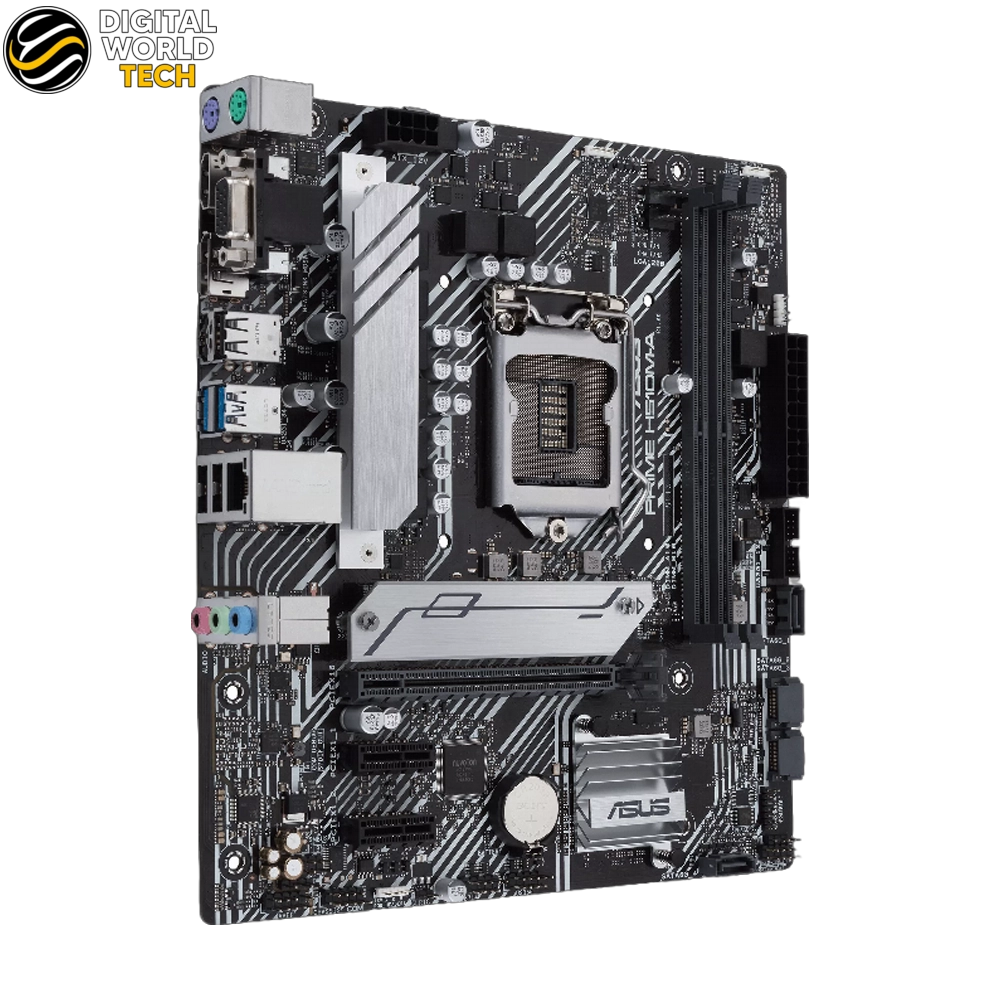

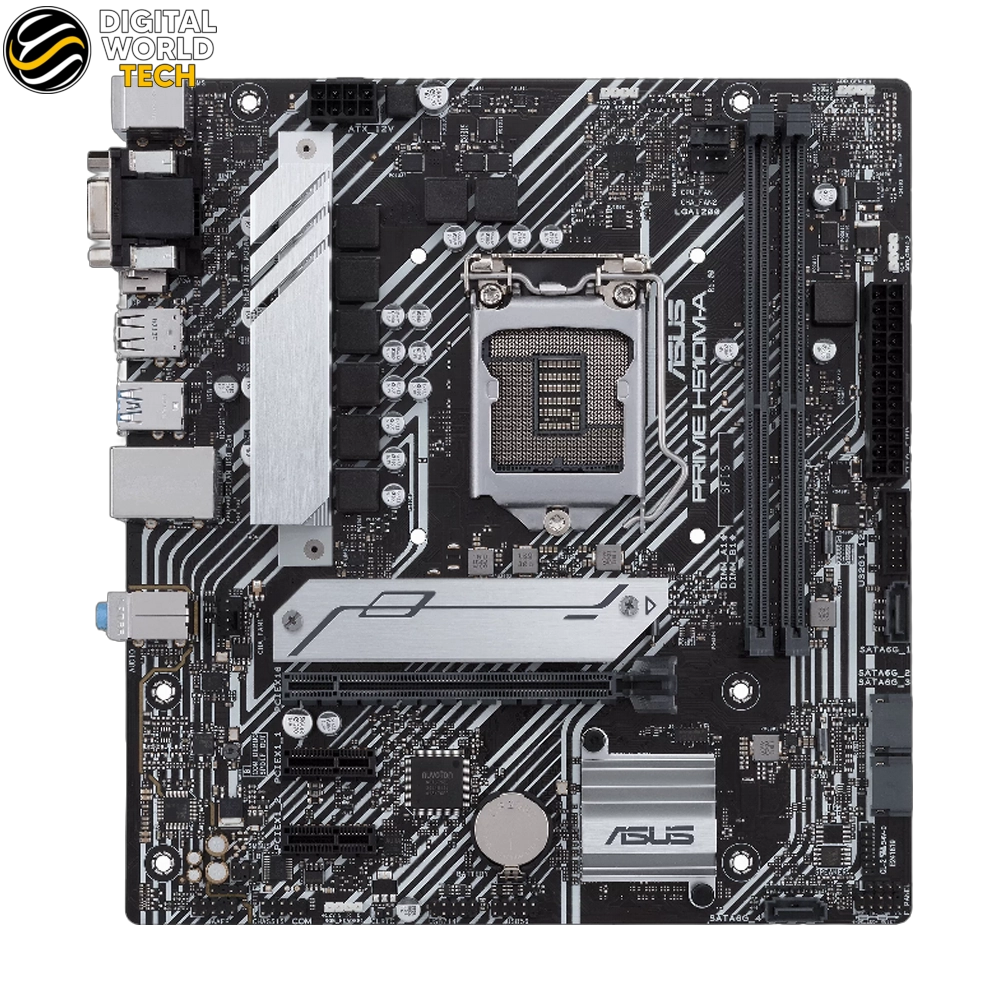

ASUS PRIME H510M-A Motherboard Intel H510 LGA 1200 micro ATX PCIe 4.0

The ASUS PRIME H510M-A Motherboard is engineered for daily users and DIY builders, featuring the Intel H510 chipset on the LGA 1200 socket with support for 11th and 10th Gen Intel Core processors. This micro ATX board delivers PCIe 4.0, a 32Gbps M.2 slot, DDR4 memory up to 64GB, and Intel 1 Gb Ethernet, making it a well-rounded foundation for a reliable Intel-based system.

Performance and Power Design

The ASUS PRIME H510M-A Motherboard utilizes a robust 6+2 phase digital VRM power design with an aluminum heatsink, ensuring stable performance under sustained multi-threaded workloads. It supports DDR4 memory up to 64GB across two DIMM slots, with speeds reaching 3200MHz when paired with 11th Gen Intel processors. The PCIe 4.0 slot enables high-bandwidth expansion for modern graphics cards, while the 5X PROTECTION III suite safeguards critical components with overvoltage protection, DRAM overcurrent protection, and stainless-steel I/O ports.

Storage and Expansion

Storage options on the ASUS PRIME H510M-A Motherboard include one M.2 slot (Key M) supporting PCIe 3.0 x4 and SATA modes at up to 32Gbps, compatible with 2242, 2260, and 2280 form factors. Four SATA 6Gb/s ports provide additional storage connectivity for traditional drives. Expansion is handled by one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots, giving builders flexibility for add-in cards and peripherals.

Connectivity and I/O

The rear I/O panel of the ASUS PRIME H510M-A Motherboard offers DisplayPort, HDMI, and D-Sub outputs for multi-monitor configurations. Intel 1 Gb Ethernet delivers dependable wired networking, while two USB 3.2 Gen 1 Type-A ports and four USB 2.0 ports cover peripheral needs. Two PS/2 ports are also included for legacy device compatibility, and 7.1-channel HD audio with three audio jacks provides immersive sound output.

Cooling, RGB, and Software

FAN Xpert 2+ intelligently controls fan speeds based on thermal sensors for optimized cooling across the ASUS PRIME H510M-A Motherboard. AURA Addressable Gen 2 headers with Aura Sync allow synchronization of RGB lighting across compatible components and strips. The board also integrates Armoury Crate and MyASUS for centralized system management, and the 128 Mb Flash ROM UEFI AMI BIOS provides intuitive tuning options for builders of all experience levels.
