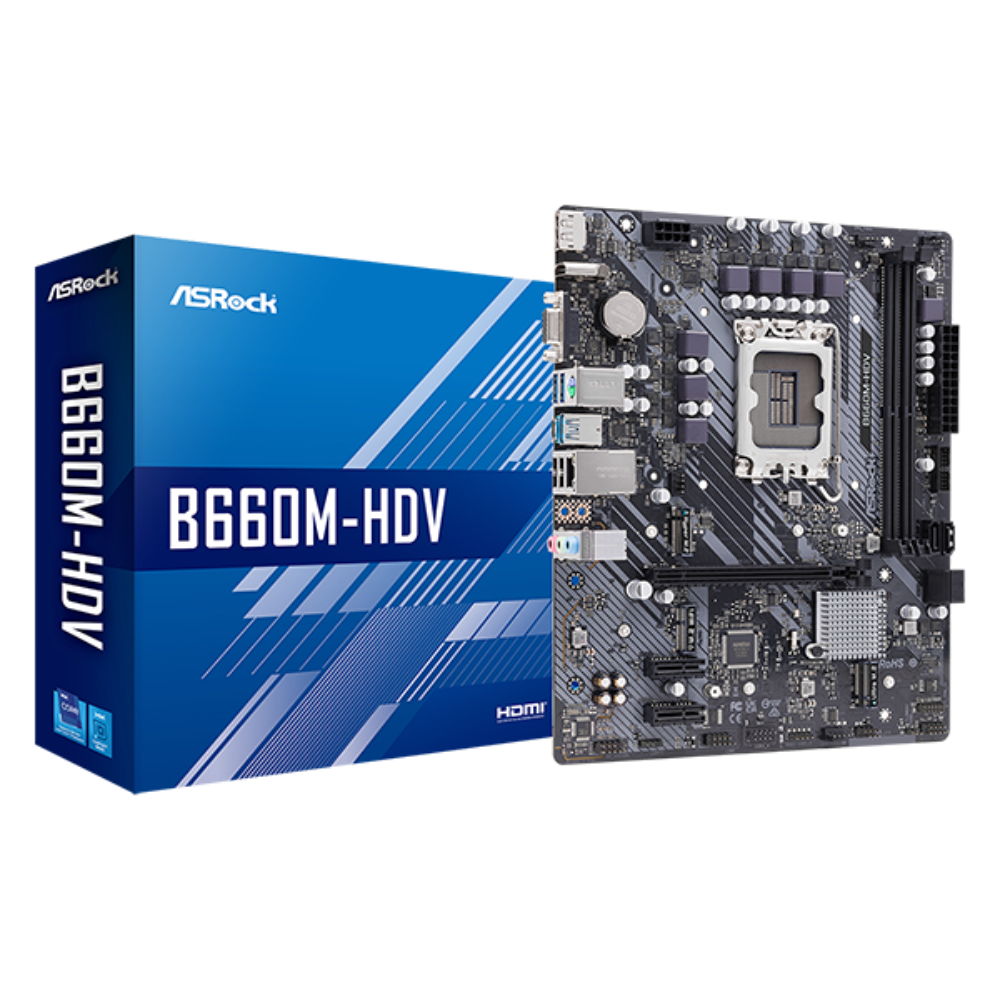

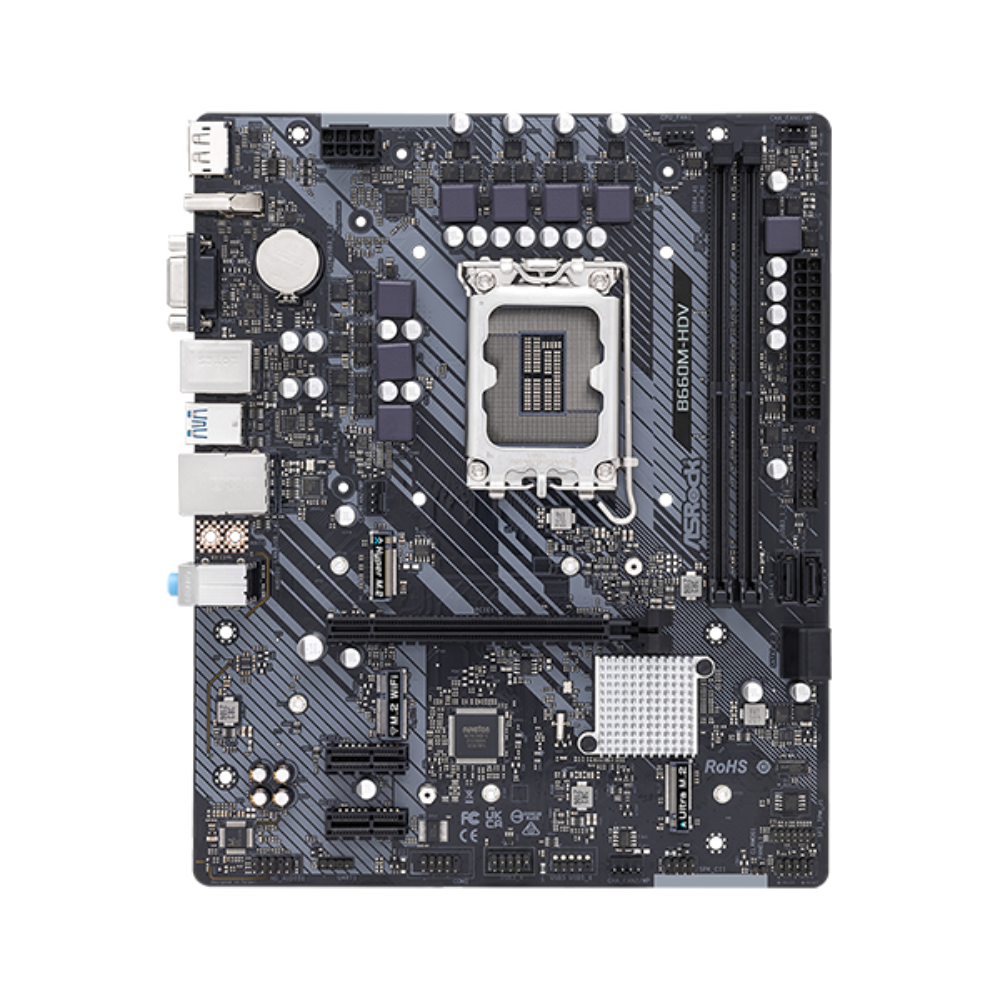

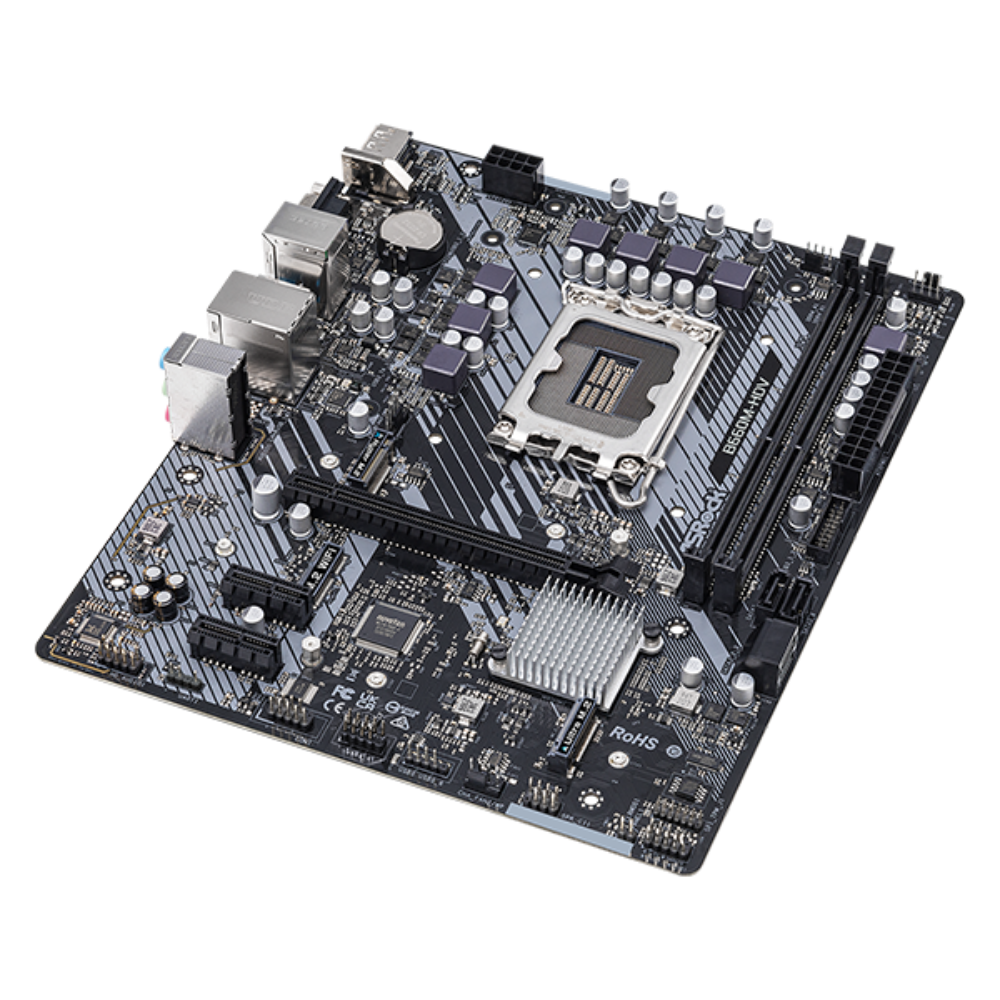

ASRock B660M-HDV LGA1700 DDR4 Motherboard is a compact Micro ATX motherboard designed for Intel Core desktop processors on the LGA1700 socket. Built with the Intel B660 chipset, DDR4 memory support, PCIe 4.0 graphics expansion, dual M.2 storage options, and Intel Gigabit LAN, it provides a practical foundation for reliable desktop PC builds and business systems.

Overview

The ASRock B660M-HDV is designed for users who need a dependable Intel platform with essential performance features in a Micro ATX form factor. It supports 14th, 13th, and 12th Gen Intel Core processors, making it suitable for compatible office PCs, home systems, and productivity desktops.

Power & Platform

The motherboard uses Digi Power design with a 6 power phase layout to provide smooth and efficient CPU power delivery. It also supports Intel Hybrid Technology and Intel Turbo Boost Max 3.0 Technology for compatible processors.

Memory & Expansion

With two DDR4 DIMM slots, the ASRock B660M-HDV supports dual-channel DDR4 memory up to 64GB and speeds up to DDR4 5066+ when overclocked. Expansion options include one PCIe 4.0 x16 slot, two PCIe 3.0 x1 slots, and an M.2 Key E socket for a compatible Wi-Fi or Bluetooth module.

Storage & Connectivity

The board includes one Hyper M.2 socket supporting PCIe Gen4x4 storage, one Ultra M.2 socket supporting PCIe Gen3x4 and SATA3 modes, and four SATA3 6.0Gb/s connectors. Rear connectivity includes HDMI, DisplayPort, D-Sub, USB 3.2 Gen1 Type-A, USB 3.2 Gen1 Type-C, USB 2.0, RJ-45 LAN, and HD audio jacks.

Graphics, Audio & Networking

Graphics output is available through D-Sub, HDMI, and DisplayPort when used with compatible processors featuring integrated graphics. The motherboard also includes Realtek 7.1-channel HD audio and Intel Gigabit LAN for stable wired networking performance.
