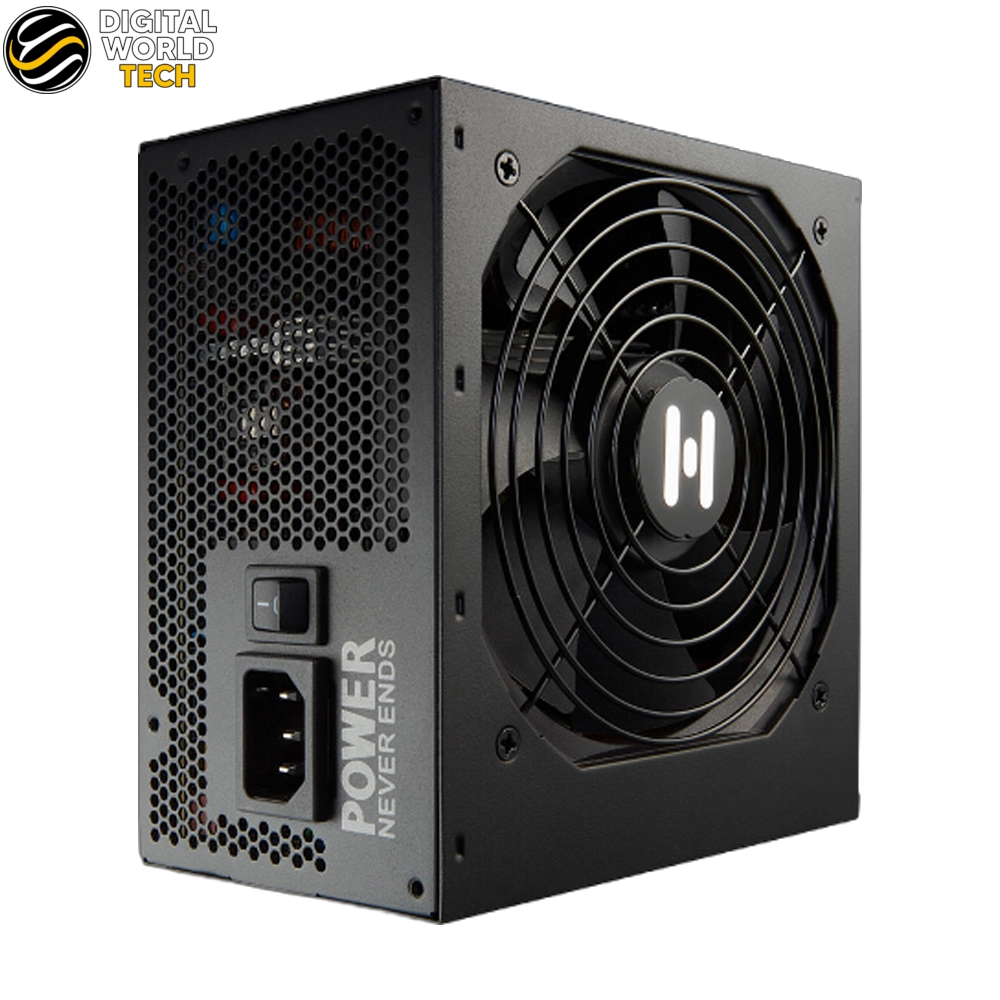

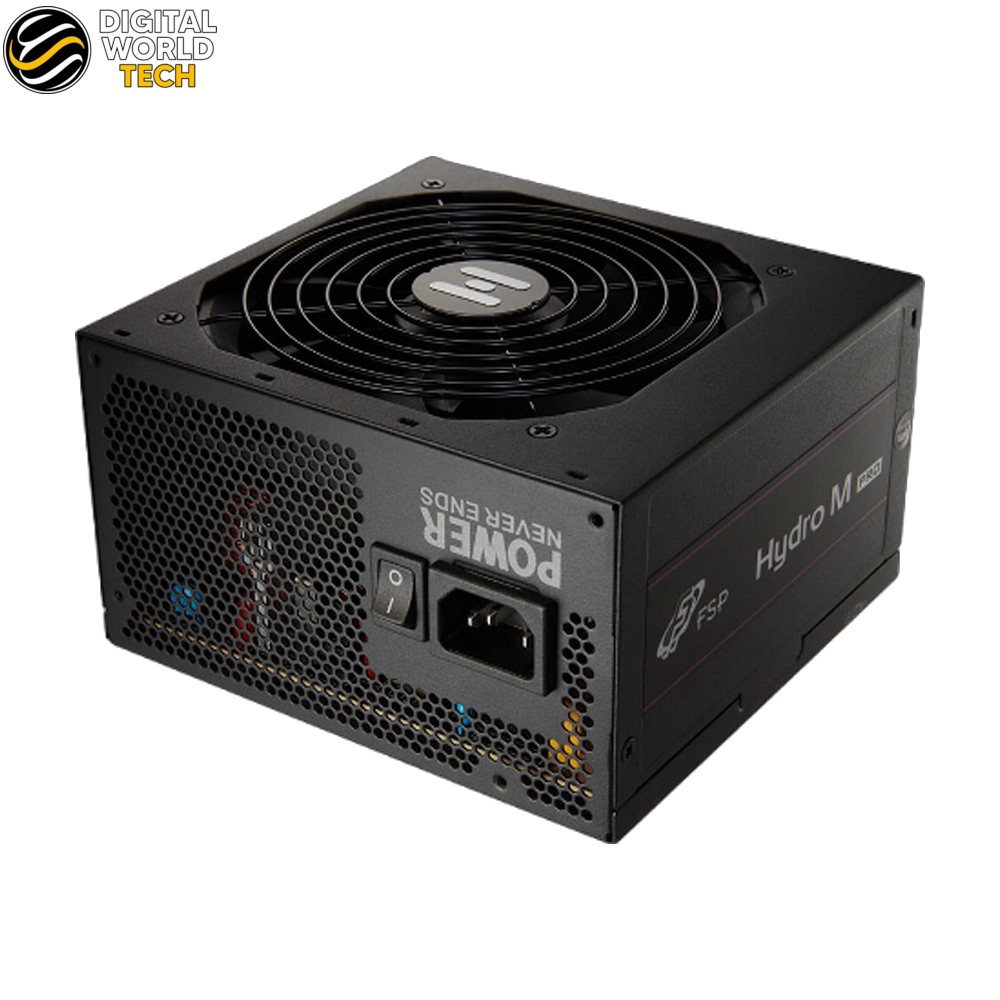

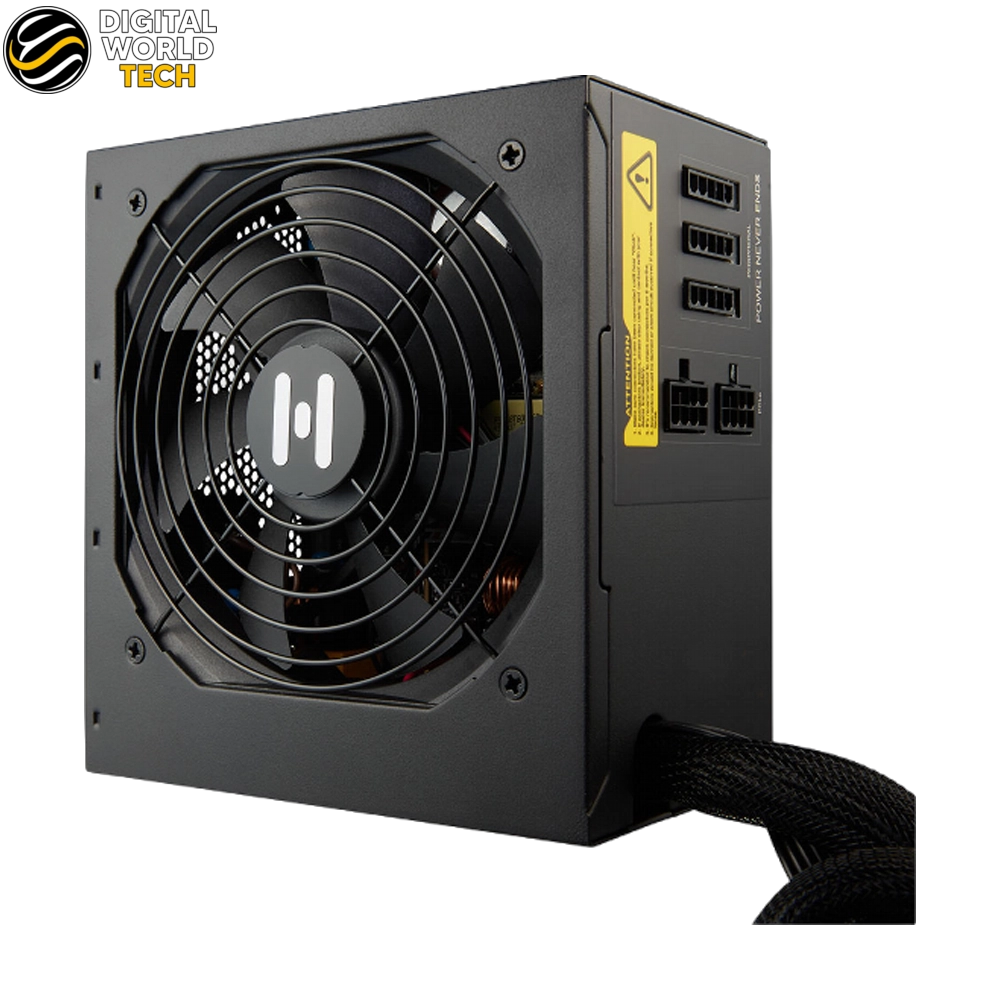

FSP HP2-800M Power Supply 800W 80 Plus Bronze Semi-Modular PCIe 5.0 ATX 3.0

The FSP HP2-800M Power Supply is an 800W 80 PLUS Bronze certified unit designed for modern gaming and workstation builds. Featuring native PCIe 5.0 support via a 12VHPWR 16-pin connector, ATX 3.0 compliance, and a single +12V rail delivering up to 800W of continuous power, this semi-modular PSU handles the most demanding components with ease. Built with 450V 105°C capacitors and a 120mm hydraulic bearing fan, the FSP HP2-800M Power Supply ensures long-lasting stability and quiet operation.

Performance and Efficiency

The FSP HP2-800M Power Supply achieves ≥88% efficiency at typical load thanks to its 80 PLUS 230V EU Bronze certification, reducing energy waste and heat output. Its active PFC rating of ≥ 0.9 and hold-up time of ≥ 17ms at 80% load guarantee stable voltage delivery even during transient power spikes. The DC-DC module design for +5V and +3.3V rails further improves regulation accuracy and cross-load stability.

Connectivity and Connectors

Designed for ATX 3.0 and PCIe 5.0 systems, the FSP HP2-800M Power Supply includes a native 12VHPWR (12V-2×6) connector for next-generation GPUs, along with 2x PCIe 6+2 pin connectors for legacy graphics cards. The connector layout also features 1x ATX 20+4 pin, 2x CPU 4+4 pin, 8x SATA, 3x Molex peripheral, and 1x floppy connector, providing comprehensive coverage for any build configuration.

Design and Build Quality

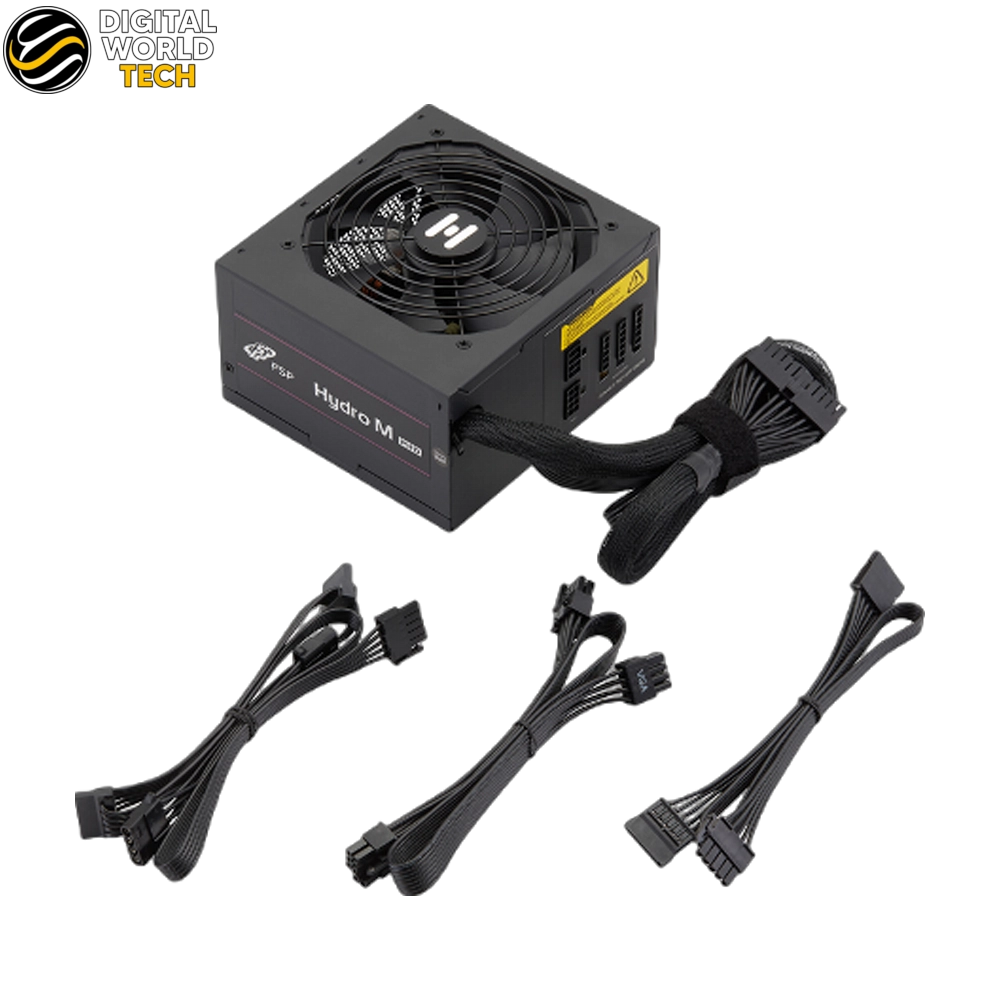

The FSP HP2-800M Power Supply features a semi-modular design with high-grade all-black ribbon cables, giving your PC a clean and polished interior look while improving airflow. Premium 450V 105°C capacitors are used throughout for extended reliability and product longevity. The unit complies with ATX12V V3.0, EPS12V V2.92, and the latest IEC 62368 safety regulation, ensuring top-tier build standards.

Cooling and Protection

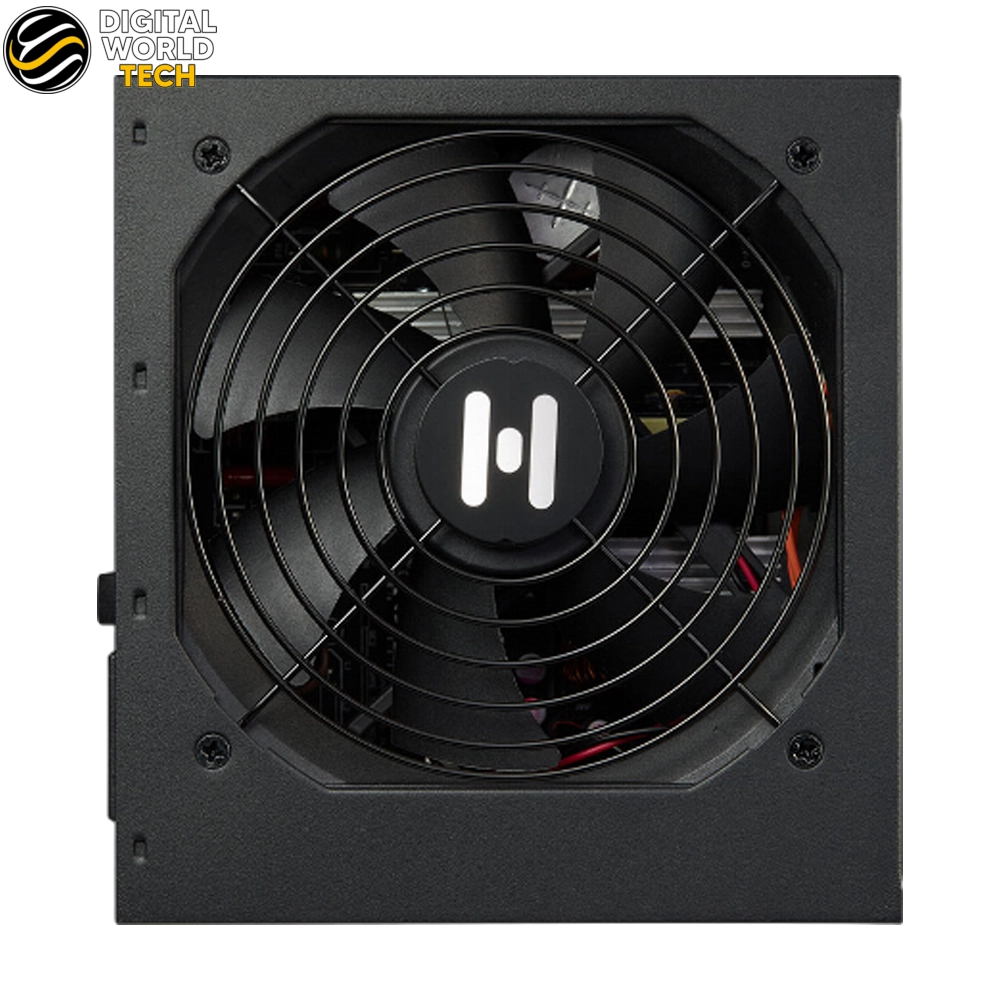

A 120mm hydraulic bearing (HYB) fan keeps the FSP HP2-800M Power Supply operating quietly under load, with optimized airflow for thermal management. The power supply includes a complete protection suite — OVP, UVP, OCP, OPP, OTP, and SCP — safeguarding your components from voltage, current, and thermal anomalies. This combination of robust cooling and multi-layer protection makes the FSP HP2-800M Power Supply a dependable choice for high-performance systems.
